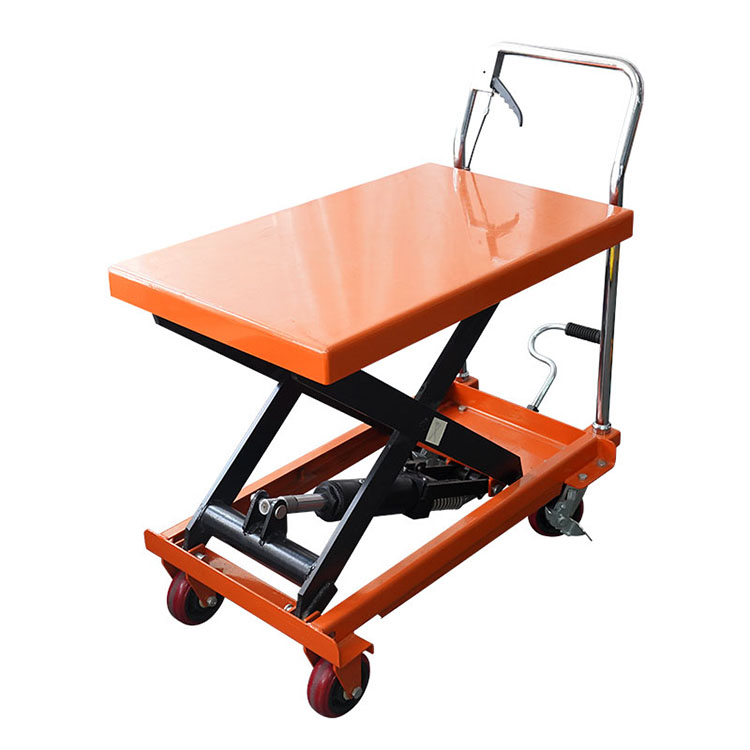

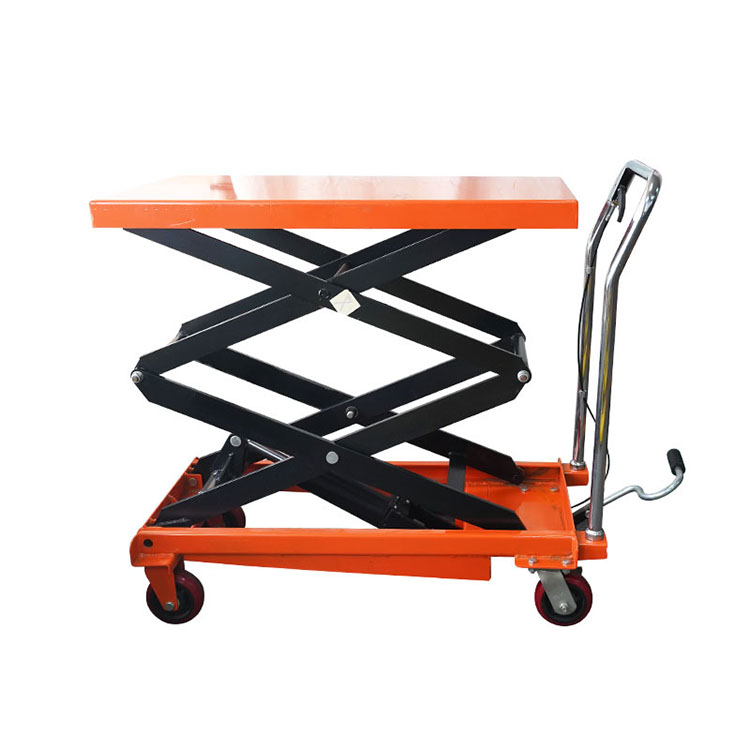

Manual hydraulic platform truck
Manual hydraulic platform trucks are high-lift material handling tools. They are suitable for short-distance material handling and lifting, and can also be used as workshop workbenches. They are easy to use, quick and labor-saving to operate, and have a wide range of applications.1. range ...
Send InquiryDetailed Description
Manual hydraulic platform trucks are high-lift material handling tools. They are suitable for short-distance material handling and lifting, and can also be used as workshop workbenches. They are easy to use, quick and labor-saving to operate, and have a wide range of applications.
1. range of application
This series of platform trucks is a high-lift handling tool, suitable for short-distance handling and lifting, carrying goods within its load capacity, and can also be used as a workbench in a workshop.
2.Specification
|
Model |
PT150Z |
PT300Z |
PT500Z |
|
Rated Load Capacity (kg) |
150 |
300 |
500 |
|
Minimum Height (mm) |
210 |
280 |
250 |
|
Maximum Height (mm) |
720 |
900 |
900 |
|
Workbench Size (mm) |
700×450×35 |
815×500×50 |
815×500×50 |
|
Wheel Diameter (mm) |
Ф100 |
Ф125 |
Ф125 |
|
Weight (kg) |
40 |
74 |
82 |
|
Outer Packaging Dimensions (mm) |
820×470×230 |
900×510×310 |
900×510×310 |
|
Hydraulic Cylinder Diameter (mm) |
Ф35 |
Ф40 |
Ф40 |
|
Handle Ground Clearance (mm) |
880 |
1010 |
970 |
|
Number of Container Loads in a 20-foot Container (mm) |
192 |
144 |
144 |
