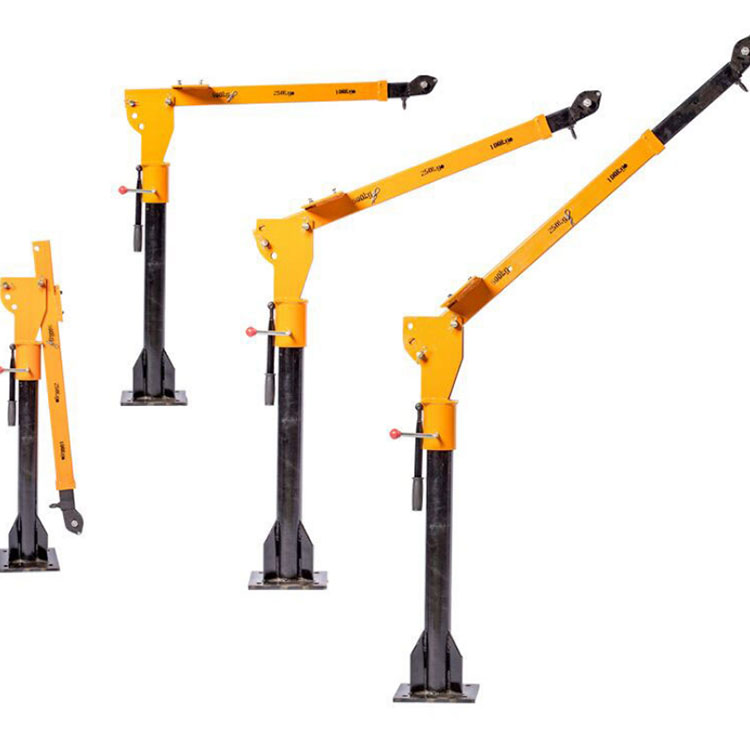

Vehicle mounted crane
The vehicle-mounted hoist is powered by 12V and 24V. It has a compact structure, small size and light weight, and occupies little space. The hoist can rotate 360 degrees, raise or lower, making it convenient for lifting and transporting goods. It is suitable for light trucks, trucks, pickups, RVs,...
Send InquiryDetailed Description
The vehicle-mounted hoist is powered by 12V and 24V. It has a compact structure, small size and light weight, and occupies little space. The hoist can rotate 360 degrees, raise or lower, making it convenient for lifting and transporting goods. It is suitable for light trucks, trucks, pickups, RVs, loading yards, platforms, etc.
1. Product Advantages
●The mini vehicle-mounted crane is powered by 12V or 24V. It is widely used in pickup trucks, RVs, loading yards, and platforms. Its outstanding performance, such as its compact structure, small size, light weight, and minimal space occupation, makes it an excellent tool for lifting goods.

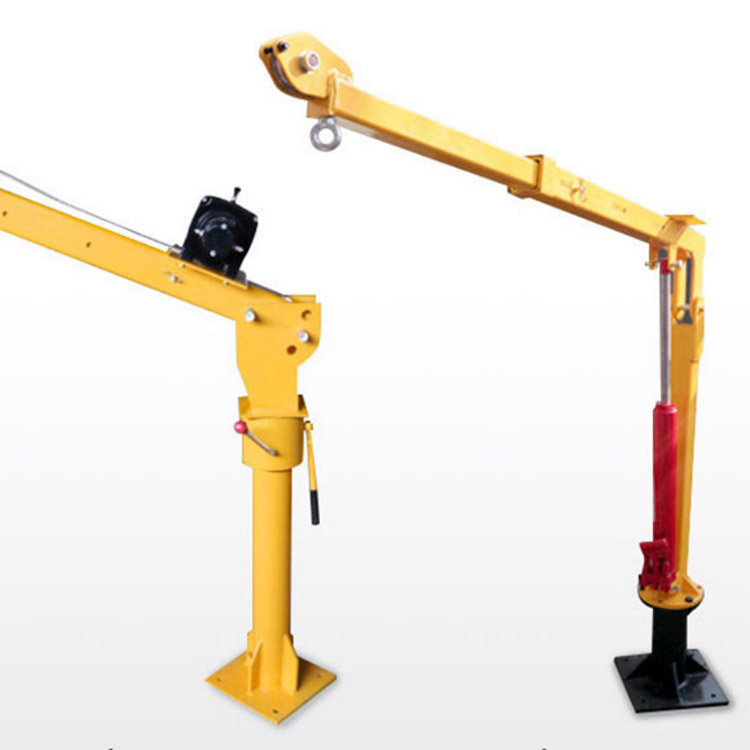

●This crane consists of five main parts: a column, support frame, boom, boom, winch, and other accessories. The user operates a joystick handle to rotate the support frame 360 degrees to complete loading and unloading operations. Goods can be raised or lowered with the crane.
2.Application Scope
It is mainly used in light trucks, light vans, covered trucks, loading yards, platforms, etc. Its outstanding features include a compact structure, small size, light weight, and minimal space occupation.
3.Specification
|
Lifting capacity (kg) |
500KG |
Mounting base size (mm) |
250*250*15 |
|
Boom height (m) |
1.2_2.2 |
Total weight (kg) |
70 |
|
Power supply (V) |
12v、 24v、 220v、 380v |
Column diameter (mm) |
83 |
|
Wire rope diameter (mm) |
5 |
Boom thickness (mm) |
6 |
|
Material |
Thickened seamless steel pipe |
Boom |
Rectangular square tube |
|
Collapsible boom |
Net height after collapsing 1.35m |
Outer tube diameter (mm) |
73*5*5 |
|
Rotating boom |
360-degree manual rotation |
Double-layer wall thickness (mm) |
10 |
|
Base (cm) |
25*25 |
Base steel plate thickness (mm) |
15 |
|
Boom length |
Distance between hook and main rod at ground level is adjustable from 0.9 to 1.5 meters, adjustable with 3-hole positioning pin holes |
||
|
Braking system |
Equipped with a diaphragm automatic braking system to ensure load, lifting, suspension, and self-locking functions |
||
